Description

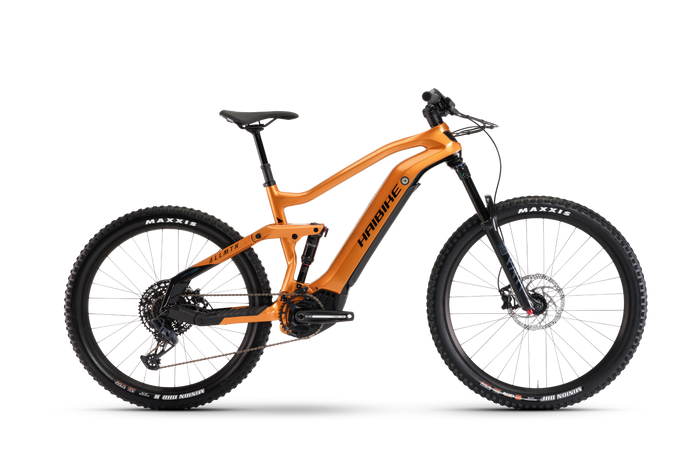

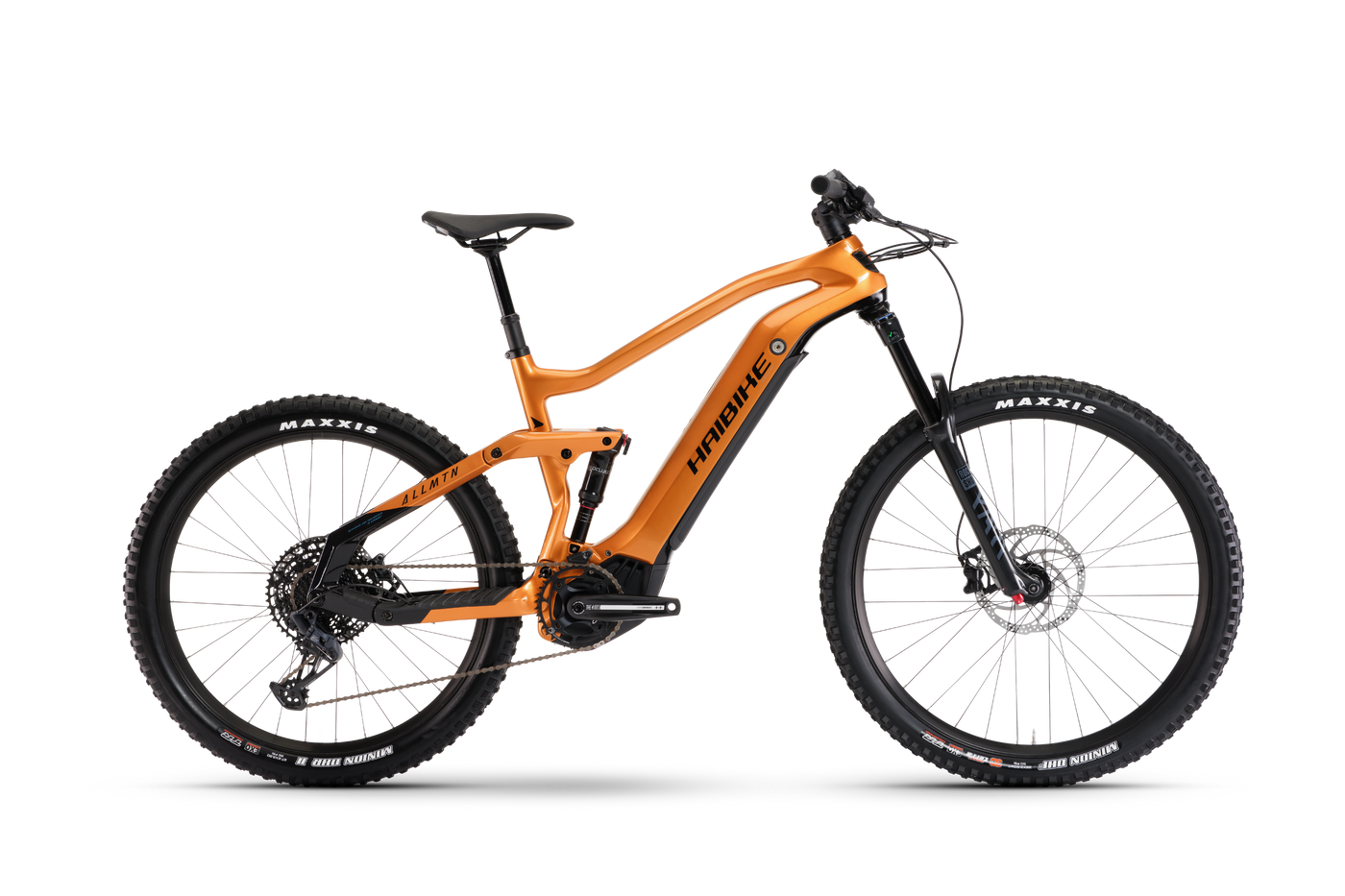

Are you looking for a sporty e-Fully with high-quality components for lots of fun on the trail? Then the new Haibike AllMtn CF 6 should be your choice! With its lightweight all-carbon frame, powerful Yamaha PW-X2 motor and 600 Wh battery as well as a progressive geometry, this e-MTB offers you pure and uncompromising trail e-performance. The SRAM GX Eagle rear derailleur, the RockShox Yari air suspension fork and hydraulic disc brakes ensure that you are well prepared for even demanding terrain and can plunge from one e-mountain bike adventure into the next.
Specification
ENGINE
Yamaha, PW-X2, 250 Wh, 80 Nm, 25 km/h
DISPLAY
Yamaha, Side Switch, 1.7" LCD, 7 functions
BATTERY
Yamaha, 600 Wh
FRAME FAMILY
Haibike, XDURO AM i600, Carbon
FORK
RockShox, Yari RC, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
DAMPER
RockShox, Deluxe Select Plus, Air, Trunnion Mount
CRANK ARM
Haibike Components, The Crank ++, Aluminium
BRAKE (FRONT)
TRP, Slate T4, Hydraulic disc brakes
BRAKE (REAR)
TRP, Slate T4, Hydraulic disc brakes
TUBE
Presta valve
RIM
WTB, ST i30 TCS, Double Wall
CLAMPING RING
Internal hexagon, 34.9 mm
REAR DERAILLEUR
Sram, GX Eagle
SHIFT LEVER
Sram, NX Eagle, Trigger switch
BOTTOM BRACKET
integrated in the motor
SPROCKET
Sram, Eagle PG1230, 11 - 50 teeth
CHAIN
Sram, SX Eagle
CHAINRING
Sram, 38 teeth
CHAIN GUIDE
Nylon directmount
BRAKE LEVER
TRP, Slate T4, Aluminium
BRAKE DISC (FRONT)
TRP, TRP S02M, 203 mm
BRAKE DISC (REAR)
TRP, TRP S02M, 203 mm
TYRE
Maxxis, Minion DHF II, 63-622, 29 x 2.5 inch
FRONT WHEEL HUB
Haibike Components, The Hub ++, 6-bolt standard
REAR WHEEL HUB
Haibike Components, TheHub ++ Thru axle 12x148, 6-bolt standard
SPOKES
Sapim, Leader
HANDLEBAR
Haibike Components, TheBar +++ Gravity, 780 mm
GRIPS
Haibike, MTB grips
STEM
Haibike Components, TheStem 2, A-head, 31.8 mm
HEADSET
Acros, BlockLock, Aluminium
SADDLE
Selle Royal, Vivo
SEAT POST
Dropper-Post Remote, Aluminium, Telescope, 31.6 mm
PEDALS
Freeridepedal, Aluminium, with Reflector
PERMITTED TOTAL WEIGHT
120.0 kg
TYRE (REAR)
Maxxis, Minion DHR II, 71-584, 27.5 x 2.8 inch
RIM (REAR)
WTB, ST i35 TCS, Double Wall
