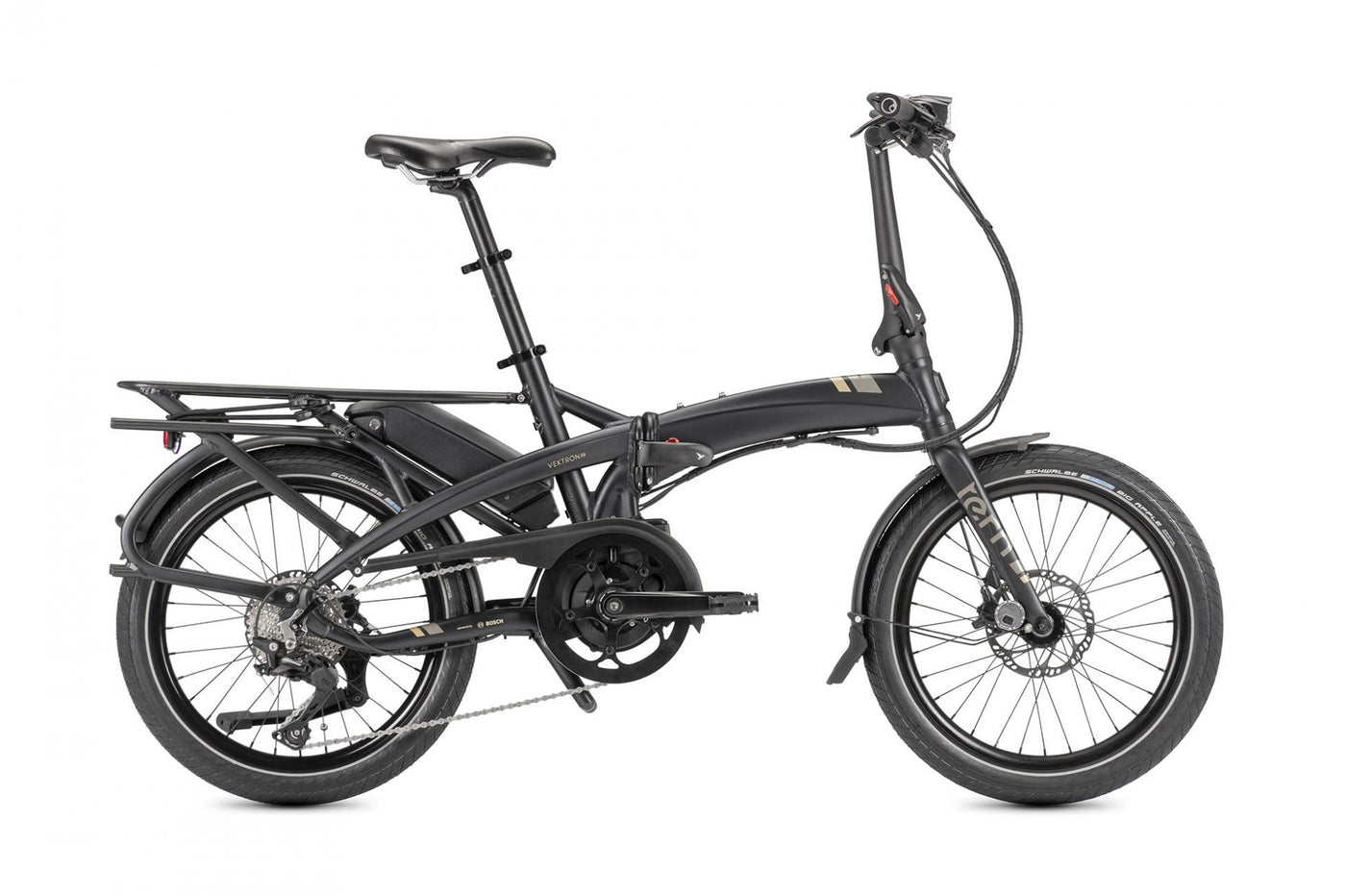

Tern Vektron 2021 S10 (MR)

Product Description
£3,700.00
Maximum quantity available reached.
  • New colors and updated styling
  • Upgraded to the Bosch Performance electric drivetrain for 300% more assistance and 65 Nm of torque
  • Updated frame with a reclining battery for a lower center of gravity and better ride
  • Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
  • Integrated Atlas V Rack works seamlessly with Thule Yepp Maxi and Nexxt Maxi child seats—no adapters needed
  • Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
  • Fits easily on buses, subways and taxis for electric multi-modal commuting



SPECIFICATIONS

GENERAL INFO
SPEEDS:
1 x 10
WEIGHT:
22.1 kg (48.7 lb)
GEAR INCHES:
30" - 97" (2.36 - 7.72 m)
FOLDING SIZE:
41 × 86 × 68 cm (16.1 × 33.9 × 26.8 in)
FOLDING TIME:
10 sec
FRAME SIZES:
One size
DISTANCE: SEATPOST TO HANDLEBAR:
62 - 69 cm (24.4 - 27.2 in)
DISTANCE: SADDLE TO PEDAL:
67 - 110 cm (26.4 - 43.3 in)
SUGGESTED RIDER HEIGHT:
147 - 195 cm (57.9 - 76.8 in)
MAX GROSS VEHICLE WEIGHT:
125 kg (275.6 lb)
MAX RIDER WEIGHT:
105 kg (231.5 lb)
FRAME
FRAME:
Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
FORK:
Tern Tarsus, 6061-Al, hydroformed
COCKPIT
HANDLEPOST:
Tern Physis 3D, 3D forged, 5 patented technologies
STEM:
Tern Andros, adjustable, forged construction, patented technology
HEADSET:
Flux Pro, angular contact bearings, Physis integrated
HANDLEBAR:
Kinetix Comp, double-butted 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE:
Ergon
SADDLE:
Tern Porter+, patented GripPad design, PrimeGel padding
SEATPOST:
Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP:
Tern Collar, 6061-AL, 2pc
BRAKES
FRONT BRAKE:
Magura MT4, hydraulic disc
REAR BRAKE:
Magura MT4, hydraulic disc
BRAKE LEVERS:
Magura, hydraulic disc
BRAKE CABLE & HOUSING:
Magura, hydraulic disc

WHEELS
FRONT HUB:
Novatec, sealed cartridge bearing, disc
REAR HUB:
Novatec, sealed cartridge bearing, disc
SPOKES AND NIPPLES:
Stainless steel, double-butted
RIMS:
Kinetix Comp, for disc
TYRES:
Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
TRANSMISSION
SHIFTER(S):
Shimano Deore, 1 x 10 spd
REAR DERAILLEUR:
Shimano Deore Shadow+
CRANKSET:
Vektron custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL:
Shimano 11-36T, 10 spd
BOTTOM BRACKET:
Motor integrated
CHAIN:
10 spd, DHT for eBike, GST corrosion resistant coating
PEDALS:
MKS EZY
SHIFTER CABLE & HOUSING:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-SYSTEM
MOTOR:
Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY:
Bosch PowerPack 400 Wh
DISPLAY:
Bosch Purion, 4 mode selectable, walk assist
RANGE:
400 Wh: 53 -106 km (34-68 mi)
CHARGER:
220V, 4A (EU); 100-240V, 4A (US)
BELLS & WHISTLES
BELL:
Aluminum
CHAINGUARD:
SKS Chainblade
KICKSTAND:
URSUS, rear mount
CLIP SYSTEM:
Magnetix 3.0
LUGGAGE SOCKET:
Yes
FRONT LIGHT:
Tern Valo Direct, 190 lumens
REAR LIGHT:
Herrmans H-Trace, for eBike
FENDERS:
SKS, stainless hardware
RACK(S):
Atlas V Rack, integrated 8 point mounting



*Note: These are the standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for the UK  may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on the production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. Tern reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
