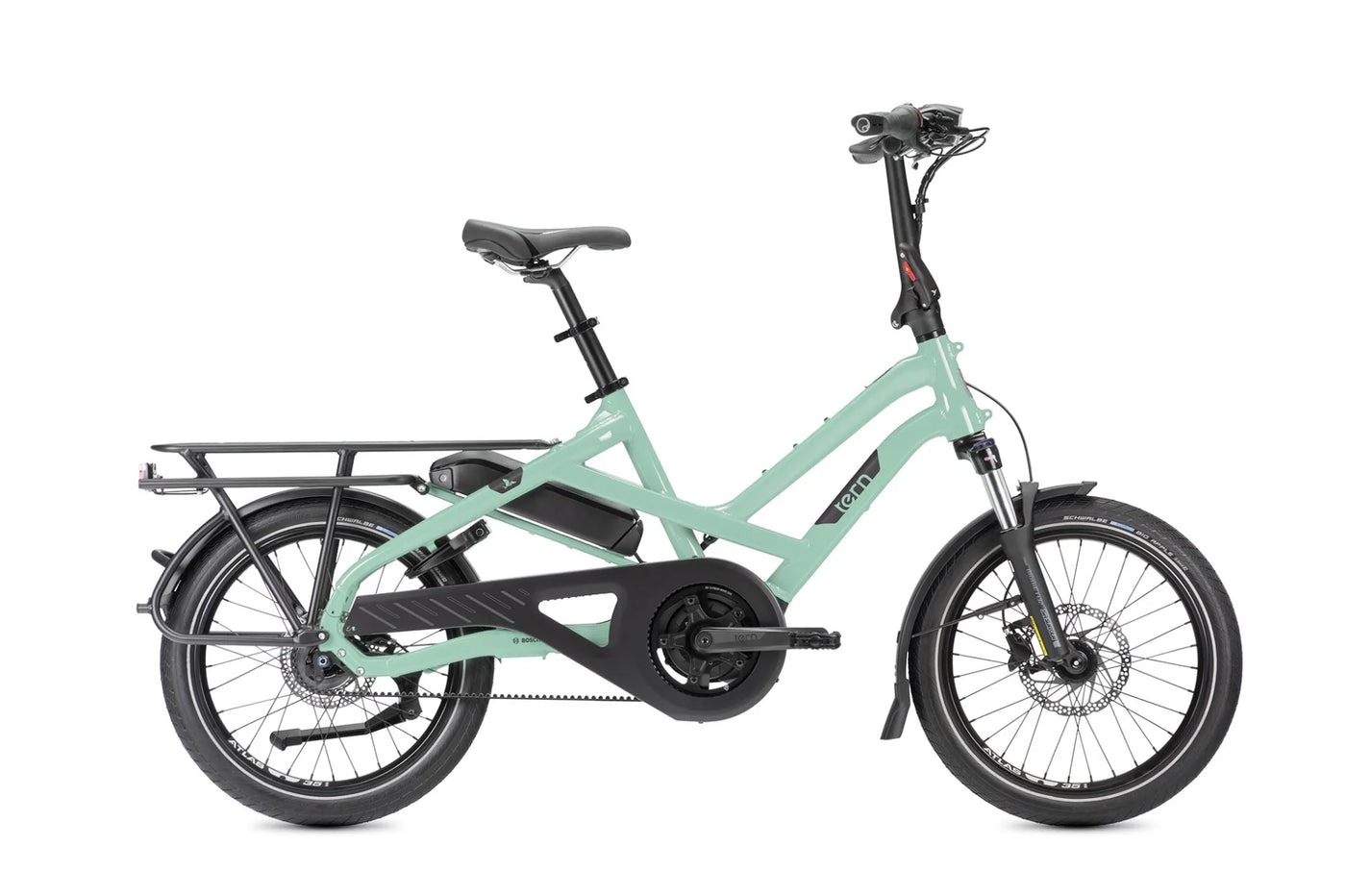

Tern HSD P5i

Price
£4,400
Tax included and shipping calculated at checkout
Colour:
Blue/Green
In stock

Frequently Bought Together

What makes it a P5i?

  • Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
  • Detachable and easy-to-understand Intuvia 100 display
  • Silent, smooth, and virtually maintenance-free Gates CDX Belt Drive
  • Shimano Nexus 5 internally geared hub

HSD Highlights

  • Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
  • Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
  • Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
  • Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
  • Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight



SPECIFICATIONS

GENERAL INFO
SPEEDS:
1 x 5
WEIGHT:
27.9 kg (61.5 lb)
GEAR INCHES:
38" - 99" (2.99 - 7.88 m)
FOLDING SIZE:
165 × 39.5 × 87 cm (65 × 15.6 × 34.3 in)
FOLDING TIME:
5 seconds
FRAME SIZES:
One size
DISTANCE: SEATPOST TO HANDLEBAR:
54.5 - 62.5 cm (21.5 - 24.6 in)
DISTANCE: SADDLE TO PEDAL:
70 - 102.5 cm (27.6 - 40.4 in)
SUGGESTED RIDER HEIGHT:
150 - 195 cm (59.1 - 76.8 in)
MAX GROSS VEHICLE WEIGHT:
180 kg (396.8 lb)
MAX RIDER WEIGHT:
120 kg (264.6 lb)

FRAME
FRAME:
Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
FORK:
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg

COCKPIT
HANDLEPOST:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
STEM:
Tern Andros, adjustable, forged construction, patented technology
HEADSET:
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
HANDLEBAR:
Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE:
Ergon
SADDLE:
Tern Upright by Velo
SEATPOST:
Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP:
Tern Collar

BRAKES
FRONT BRAKE:
Shimano, hydraulic disc, 180 mm rotor
REAR BRAKE:
Shimano, hydraulic disc, 160 mm rotor
BRAKE LEVERS:
Shimano, hydraulic disc
BRAKE CABLE & HOUSING:
Shimano, hydraulic disc

WHEELS
FRONT WHEEL:
Tern Atlas H, cargo wheel
REAR WHEEL:
Tern Atlas H, cargo wheel
FRONT HUB:
Novatec, Thru-axle, sealed bearings
REAR HUB:
Shimano Nexus 5
SPOKES AND NIPPLES:
Stainless steel
RIMS:
Tern Atlas H, wide 35 mm
TYRES:
Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION
SHIFTER(S):
Shimano Nexus 5
CRANKSET:
Tern HSD custom, Gates CDX CNC machined beltring
CASSETTE/FREEWHEEL:
Gates CDX, precision CNC machined cog
BOTTOM BRACKET:
Motor integrated
CHAIN:
Gates Carbon Drive CDX belt
PEDALS:
Urban with non-slip surface
SHIFTER CABLE & HOUSING:
Shimano

E-SYSTEM
MOTOR:
Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY:
Bosch PowerPack 545
DISPLAY:
Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
CONNECT MODULE:
Optional
RANGE:
545 Wh: 51-121 km (32-76 mi)
CHARGER:
220V, 4A (EU); 100-240V, 4A (US)

BELLS & WHISTLES
BELL:
Pitch Plus, brass
CHAINGUARD:
Tern Custom, full chain cover
KICKSTAND:
Ursus, rear mount
LUGGAGE SOCKET:
Combo Mount
FRONT LIGHT:
Tern Valo Direct, 190 lumens
REAR LIGHT:
Herrmans H-Trace, for eBike
FENDERS:
SKS, stainless hardware
RACK(S):
Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity
FRAME LOCK:
ABUS, keyed-alike with Bosch battery
