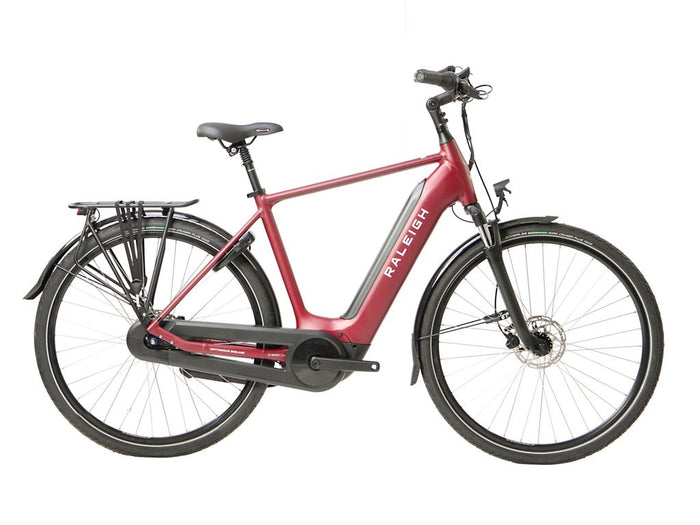

Raleigh Motus Tour Crossbar Hub
With power-assisted pedalling boosting your output by up to 250%, the Motus Tour Hub Gear gives you the freedom to go further and faster than ever before. Powered by a feather-light, near-silent Bosch motor, you won’t even realise how far you’ve gone until you check the map. And with a 400WH battery, you can keep pedalling for miles. Just make sure to stop before you hit the sea.
A fully-equipped electric bike like the Motus Tour gives you everything you need to race through the hills – no sweating necessary. But what’s the rush? If you prefer to slow things down and get more of a workout in, the handlebar-handy Intuvia Display lets you switch modes while you’re riding.
Aside from all the high-tech stuff, the Motus Tour comes with all the fixings of a seriously good bike – from the easy-to-use hub gear system to the powerful hydraulic disc brakes. All our Motus Tour bikes also come kitted out with full mudguards, a built-in wheel lock, a kickstand and bright lights at the front and rear, promising you a safe, comfortable ride – all year round.
The Motus range also offers a wide range of frame and wheel sizes, perfect for the tall and tiny alike. So, simply choose your size, your colour and your frame-style, and start pedalling. You’ll never look back.
The route to work or the weekend trails. The leg-burning race or the lazy Sunday ride. Wherever you’re going, whatever the reason, these wheels make sure getting there is the best bit – hills and all. Because it’s not about the destination. It’s about the journey. And with the Motus Tour, your journey will be an absolute blast.
HUB GEARS
Hub gears enable you to shift while standing still. and require very little maintenance. They are known for their practicality and durability in all conditions.
BOSCH 400WH POWERPACK
The 400WH integrated battery will allow you to ride for up to an impressive 108 miles on a single charge
BOSCH ACTIVE LINE MOTOR
Re-engineered Active Line Motor from Bosch - feather light and quiet. The newly re-designed Active Line motor is 25% smaller than its predecessor, weighs in at only 2.9kgs and is almost completely noise free so you can get the maximum enjoyment out of your journeys.
FRAMESET | |
Frame Type | High |
Frame Material | Aluminium 6061 |
Fork Type | RST Volant 50mm travel |
Fork Material | N/A |
Size(s) | Meduim (53cm), Large (57cm) |
Colour(s) | Red |
Total Bike Weight | |
E-SYSTEM | |
Motor Position | Mid Motor |
Motor | Bosch Active Line |
Battery | Bosch PowerTube 400Wh |
Display | Bosch Intuvia |
Range | 80 miles |
Charger | Bosch 2A |
Charging Time | 6 hours |
COMFORT | |
Handlebar | Aluminium comfort handlebar 640mm |
Grips | Comfort grips |
Stem | Aluminium adjustable stem 90mm |
Saddle | Selle Royal Wave saddle |
Seatpost | Aluminium seatpost 27.2x300mm |
Seatpost Clamp | Aluminium clamp 38.1mm |
CONTROLS | |
Front Brake | Tektro T285 Hydraulic disc brake, 160mm |
Rear Brake | Tektro T285 Hydraulic disc brake, 160mm |
Number of Gears | 7 |
Front Shifter | N/A |
Rear Shifter | Shimano Nexus revoshift 7 speed |
Bell | N/A |
DRIVETRAIN | |
Gear Type | Hub Gear |
Crankset | KMC 38t chainring with 170mm crank arm |
Bottom Bracket | N/A |
Pedals | Resin pedal with anti slip platform |
Front Derailleur | N/A |
Rear Derailleur | N/A |
Hub Gear | Shimano Nexus 7 speed hub |
Cassette | Shimano 18t sprocket |
Chain | KMC e1 single speed chain |
Chainguard | Full chain guard |
WHEELS | |
Front Wheel | 700c double side wall rim with QR aluminium hub 36H |
Front Tyre | 700c x 47 Mitas Flash |
Rear Wheel | 700c double side wall rim with QR aluminium hub 36H |
Rear Tyre | 700c x 47 Mitas Flash |
Inner Tubes | 622x47 schrader valve |
EXTRAS | |
Mudguards | Eurofender full mudguard set |
Rear Carrier | Motus crossbar MIK compatible carrier |
Front Carrier | N/A |
Front Light | Herrmans MR.GO front light |
Rear Light | Spanninga Aerflow 2 rear light |
Stand | Aluminium stand |
Lock | Abus frame lock |
Stabilizers | N/A |
