Description

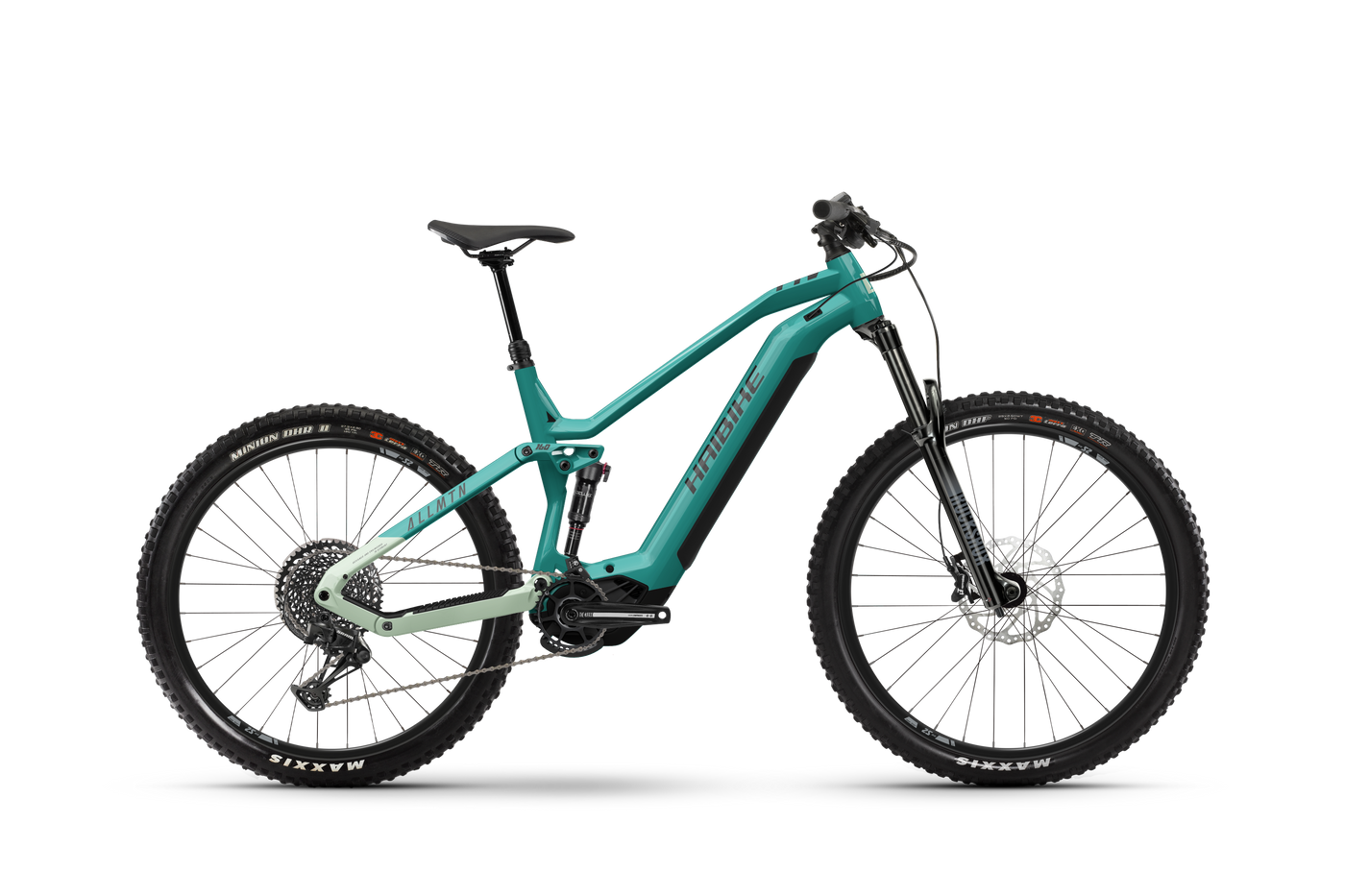

With the new AllMtn 2, all paths are open to you: Whether tricky root passages, flow trails or tough climbs. With 160 mm suspension travel and a wheel mix of 29" at the front and 27.5" at the rear, you can roll over any obstacle with ease and benefit from perfect traction on steep uphills. With the support of the new, more compact and more powerful Yamaha PW-X3 motor with 630 Wh battery, you'll get up the mountain quickly and have guaranteed fun on any terrain.
Specification
ENGINE
Yamaha, PW-X3, 250 Wh, 85 Nm
DISPLAY
Yamaha, Side Switch, 1.7" LCD, 7 functions
BATTERY
InTube, 630 Wh
FRAME FAMILY
Haibike, AllMtn PW-X3, Aluminium
FORK
RockShox, 35 Gold RL, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
DAMPER
RockShox, Deluxe Select Plus, Air, Trunnion Mount
CRANK ARM
Haibike Components, The Crank ++, Aluminium
BRAKE (FRONT)
TRP, Slate T4, Hydraulic disc brakes
BRAKE (REAR)
TRP, Slate T4, Hydraulic disc brakes
TUBE
Presta valve
RIM
WTB, ST i30 TCS, Double Wall
CLAMPING RING
Internal hexagon, 38.1 mm
REAR DERAILLEUR
Sram, SX Eagle
SHIFT LEVER
Sram, SX Eagle, Trigger switch
BOTTOM BRACKET
integrated in the motor
SPROCKET
Sram, Eagle PG1210, 11 - 50 teeth
CHAIN
Sram, SX Eagle
CHAINRING
Sram, 38 teeth
CHAIN GUIDE
Nylon directmount
BRAKE LEVER
TRP, Slate T4, Aluminium
BRAKE DISC (FRONT)
Tektro, TR203, 203 mm
BRAKE DISC (REAR)
Tektro, TR203, 203 mm
TYRE
Maxxis, Minion DHF II, 63-622, 29 x 2.5 inch
FRONT WHEEL HUB
Haibike Components, The Hub ++, 6-bolt standard
REAR WHEEL HUB
Haibike Components, TheHub ++ Thru axle 12x148, 6-bolt standard
SPOKES
Sapim, Race
HANDLEBAR
Haibike Components, TheBar +++, 780 mm
GRIPS
Haibike, MTB grips
STEM
Haibike Components, TheStem +++, 31.8 mm
HEADSET
Acros, BlockLock, Aluminium
SADDLE
Selle Royal, Vivo
SEAT POST
Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
PEDALS
Freeridepedal, Aluminium, with Reflector
PERMITTED TOTAL WEIGHT
150.0 kg
TYRE (REAR)
Maxxis, Minion DHR II, 66-584, 27.5 x 2.6 inch
RIM (REAR)
WTB, ST i35 TCS, Double Wall
