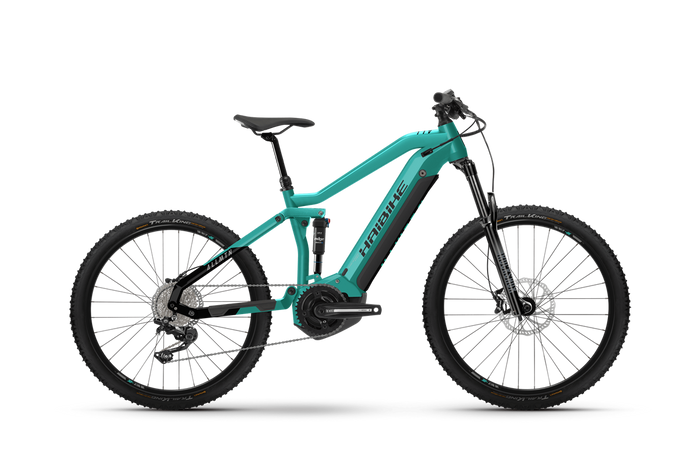

Haibike Yamaha PWST - AllMtn 1.0
The entry-level AllMtn model opens up an enormous range of possibilities: with 160mm travel and a wheelsize mix of 29" at the front and 27.5" at the rear, you and the AllMtn 1 will manoeuvre over any terrain with ease and enjoy first-class performance even on challenging descents. The powerful Yamaha PW-ST motor powers you up every hill with a smooth, natural feel to the ride
-
-
ENGINE
Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h
-
DISPLAY
Yamaha, Side Switch, 1.7" LCD, 7 functions
-
BATTERY
InTube, 630 Wh
-
FRAME FAMILY
Haibike, AllMtn Yamaha i630, Aluminium
-
FORK
RockShox, 35 Silver, Air, Travel= 160 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
-
DAMPER
SR Suntour, Edge LO-R8, Air, Trunnion Mount M8x25
-
CRANK ARM
Haibike Components, The Crank +, Aluminium
-
BRAKE (FRONT)
Tektro, Orion M745 , 203 mm, 4-piston disc brake
-
BRAKE (REAR)
Tektro, Orion M745 , 180 mm, 4-piston disc brake
-
TUBE
Presta valve
-
RIM
Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
-
CLAMPING RING
Internal hexagon, 34.9 mm
-
REAR DERAILLEUR
Shimano, Deore M5100
-
SHIFT LEVER
Shimano, Deore M5100, Trigger switch, 11 Speed
-
BOTTOM BRACKET
Integrated in the motor
-
SPROCKET
Shimano, M5100, 11 - 51 teeth
-
CHAIN
KMC, X11e
-
CHAINRING
Steel, 38 teeth
-
BRAKE LEVER
Tektro, Orion M745, Aluminium
-
BRAKE DISC (FRONT)
Tektro, TR203
-
BRAKE DISC (REAR)
Tektro, TR180
-
TYRE
Continental, Trail King, 60-622, 29" x 2.4"
-
FRONT WHEEL HUB
Haibike Components, TheHub ++, 6-bolt standard
-
REAR WHEEL HUB
Haibike Components, TheHub ++ Steckachse 12x148, 6-bolt standard
-
SPOKES
Sapim, Leader, Black
-
HANDLEBAR
Haibike Components, TheBar +++ Gravity , 780 mm
-
GRIPS
Haibike, MTB grips
-
STEM
Haibike Components, TheStem ++, A-head, Bar bore: 31.8 mm, 7.0 °
-
HEADSET
Feimin, A-Head Tapered, Ball bearing
-
SADDLE
Selle Royal Vivo 1216HRN
-
SEAT POST
Haibike Components, TheSeatpost ++, Aluminium, 31.6 mm
-
PEDALS
Freeridepedal , Aluminium, with Reflector,
-
PERMITTED TOTAL WEIGHT
120.0 kg
-
TYRE (REAR)
Continental, Trail King, 65-584, 27.5" x 2.6"
-
RIM (REAR)
Rodi, Tryp 35, Aluminium, with eyelets, hollow rim
-
