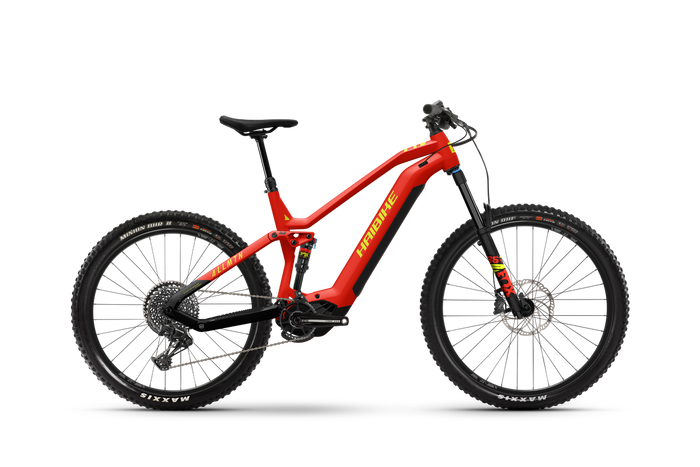

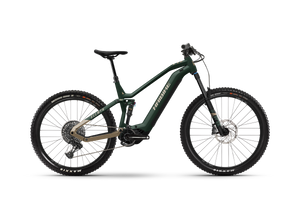

Haibike Allmtn 7
The Haibike ALLMTN 7 offers uncompromising ePerformance on the trail: The compact and powerful Yamaha PW-X3 motor guarantees optimal support, its 720 Wh battery providing enough range for even longer rides. The wheel size mix of 29"/27.5" ensures optimum traction uphill and good rollover performance downhill. With the 160 mm FOX 36 Float Performance air suspension fork, a SRAM GX Eagle rear derailleur and Magura MT7 4-piston disc brakes you are well equipped for any adventure, mastering jumps or challenging lines safely and confidently.
-
FORK
FOX 36 Float Performance, Travel: 160mm
-
BATTERY
InTube 720 Wh
-
DRIVE UNIT
Yamaha PW-X3, 85Nm, 25km/h
-
MIXED WHEEL SIZES
27.5" / 29"
ENGINEYamaha, PW-X3, 250 W, 85 Nm
DISPLAYYamaha, Interface - X
BATTERYInTube, 720 Wh
FRAME FAMILYHaibike, AllMtn PW-X3, Aluminium
FORKFOX, 36 Float Performance Luft 160, Lockout, Air, 160 mm travel, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
DAMPERFOX, Float DPS Performance EVOL LV Trunnion, Air, Trunnion
CRANK ARMHaibike Components, The Crank ++, Aluminium
BRAKE (FRONT)Magura, MT7, 4-piston disc brake
BRAKE (REAR)Magura, MT7, 4-piston disc brake
TUBEPresta valve
RIMWTB, ST i30 TCS, Double Wall
CLAMPING RINGInternal hexagon, 38.1 mm
REAR DERAILLEURSram, GX Eagle
SHIFT LEVERSram, CX Eagle, Trigger switch
BOTTOM BRACKETintegrated in the motor
SPROCKETSram, Eagle PG1230, 11 - 50 teeth
CHAINSram, SX Eagle
CHAINRINGSram, 38 teeth
CHAIN GUIDENylon directmount
BRAKE LEVERMagura, MT7 HC-lever
BRAKE DISC (FRONT)Magura, MDR-P 203, 203 mm
BRAKE DISC (REAR)Magura, MDR-P 203, 203 mm
TYREMaxxis, Minion DHF II, 63-622, 29 x 2.5 inch
FRONT WHEEL HUBHaibike Components, The Hub ++, 6-bolt standard
REAR WHEEL HUBHaibike Components, TheHub ++ Thru axle 12x148, 6-bolt standard
SPOKESSapim, Race
HANDLEBARHaibike Components, TheBar +++, 780 mm
GRIPSHaibike, MTB grips
STEMHaibike Components, TheStem +++, 31.8 mm
HEADSETAcros, BlockLock, Aluminium
SADDLEfi'zi:k, Terra Aidon X5-160
SEAT POSTHaibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm
PEDALSFreeridepedal, Aluminium, with Reflector
PERMITTED TOTAL WEIGHT120.0 kg
TYRE (REAR)Maxxis, Minion DHR II, 66-584, 27.5 x 2.6 inch
RIM (REAR)WTB, ST i35 TCS, Double Wall
-
